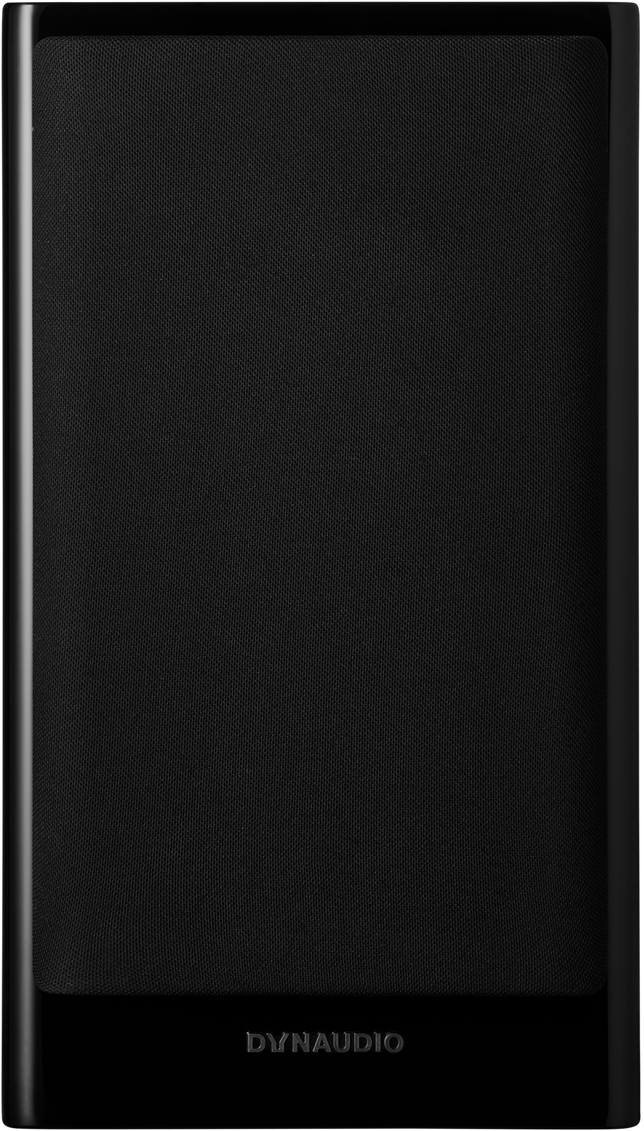

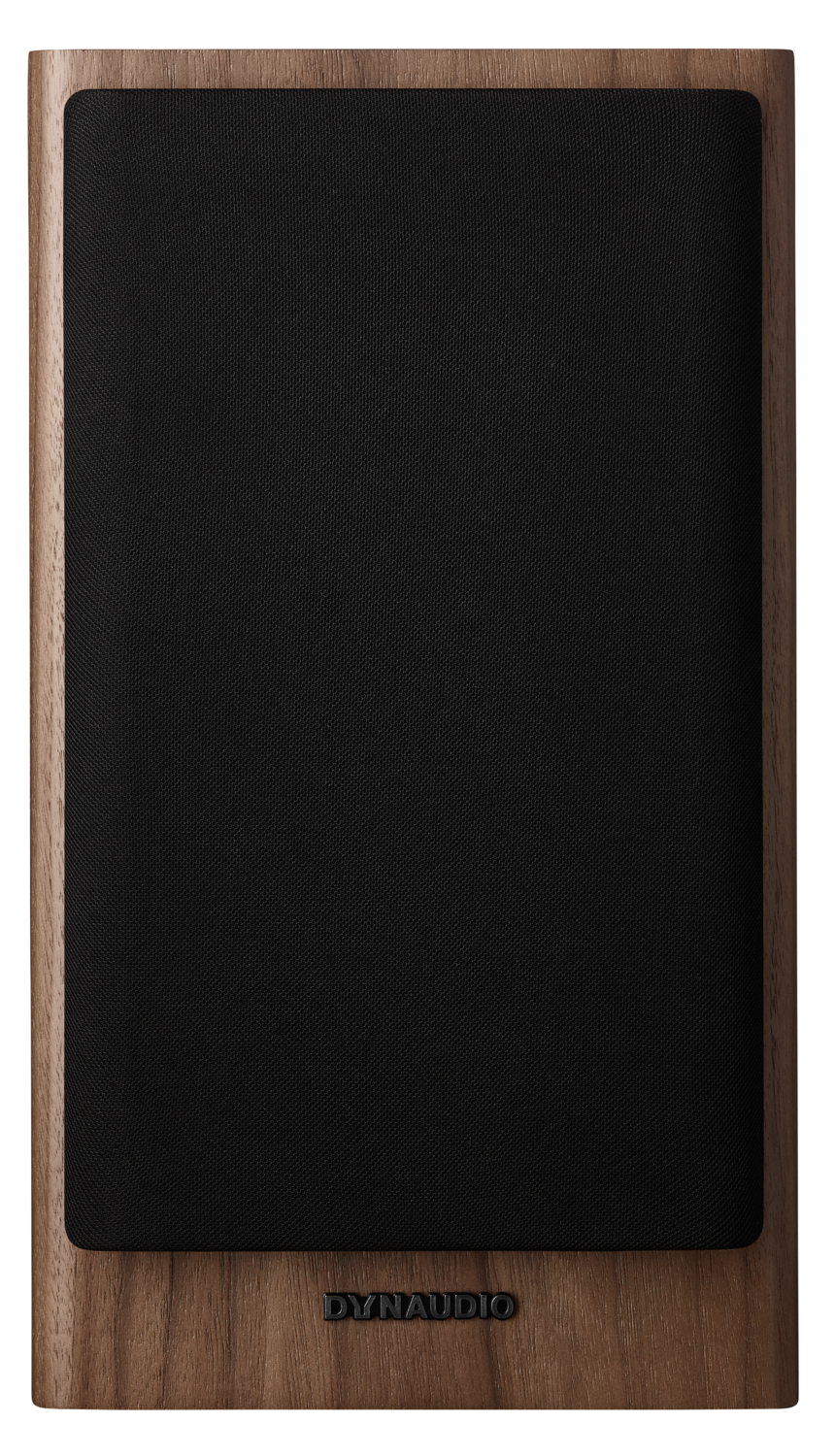

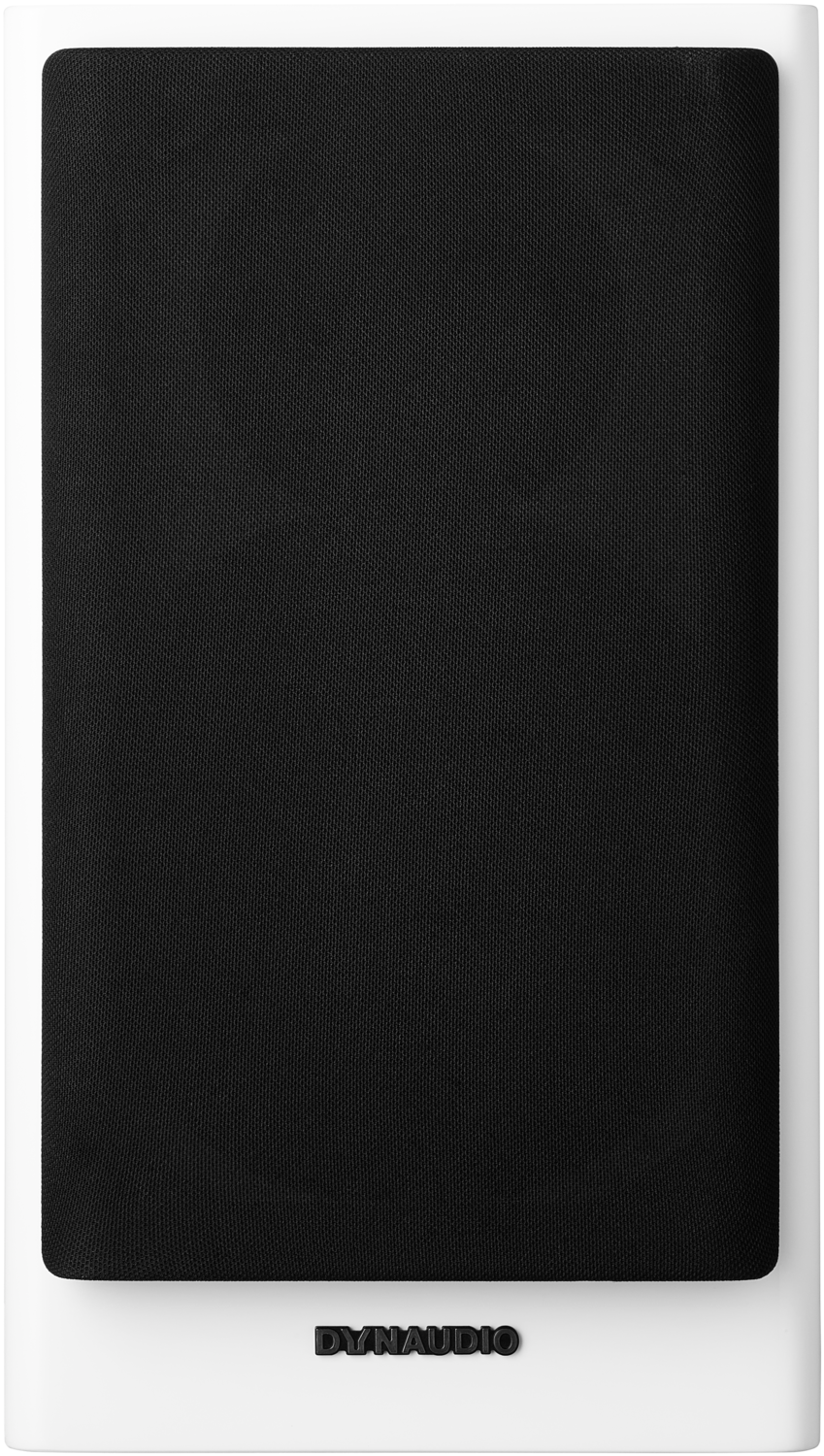

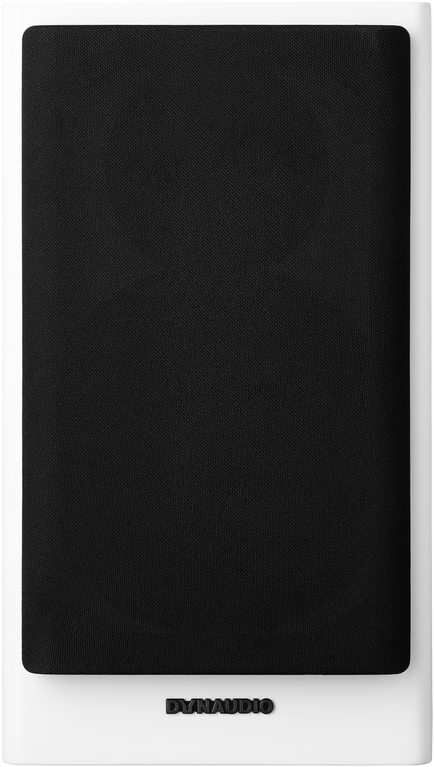

Evoke 20
Want to know about this item?

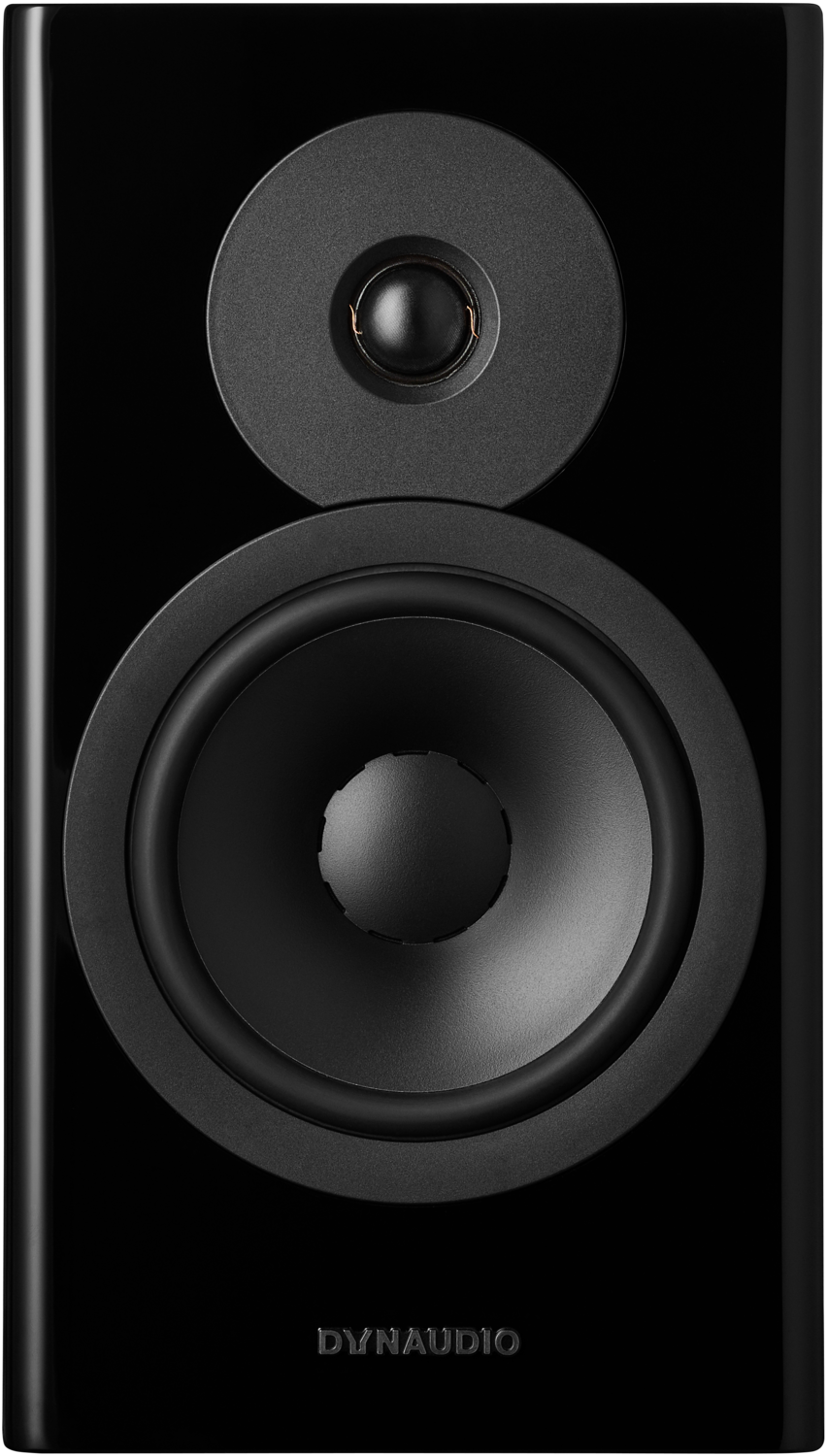

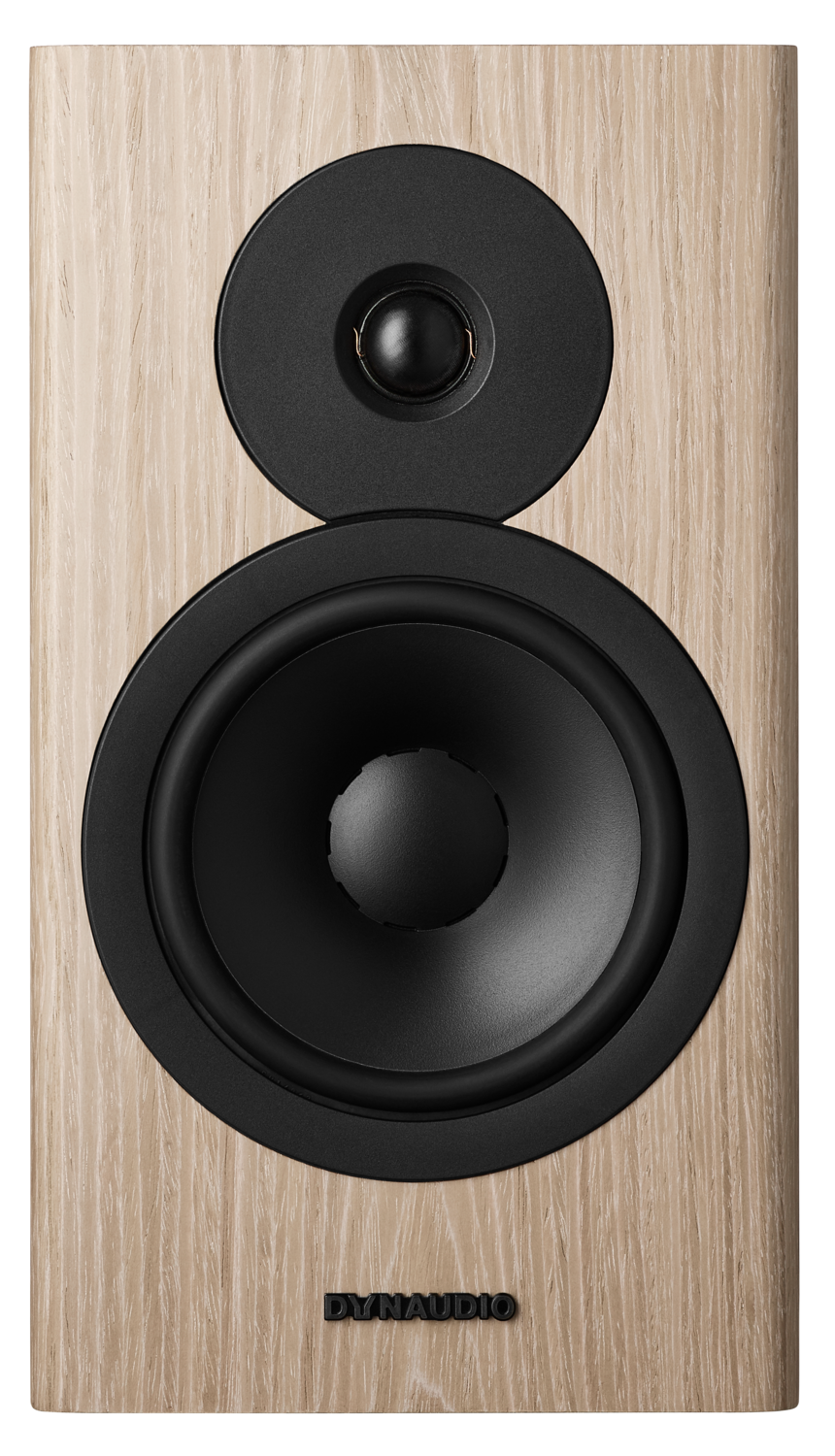

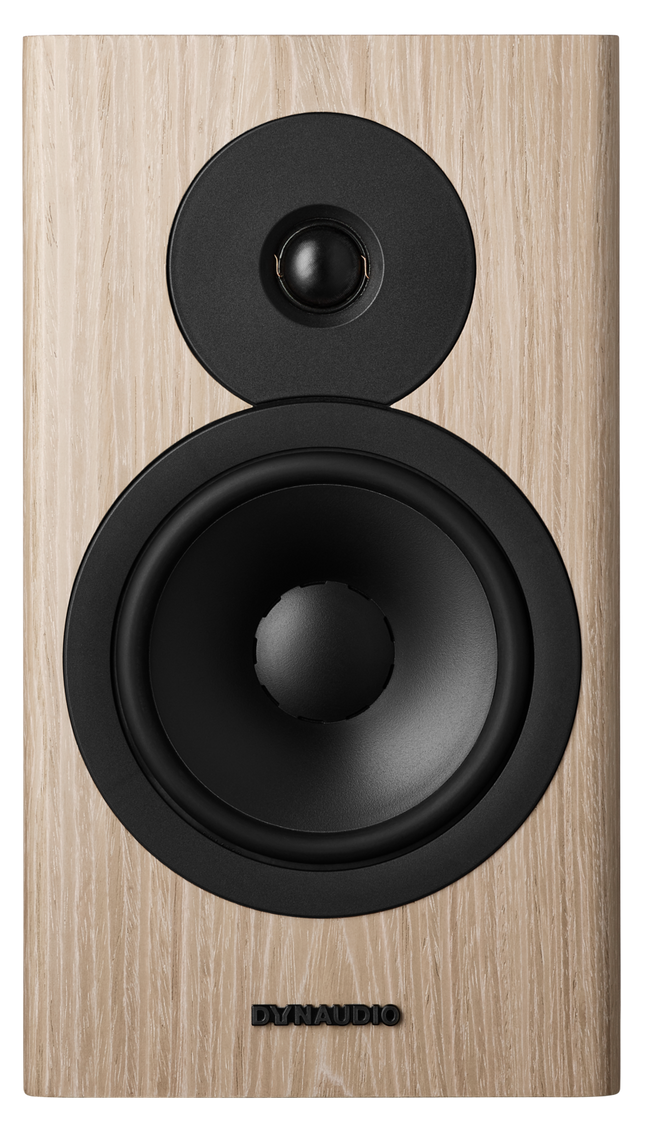

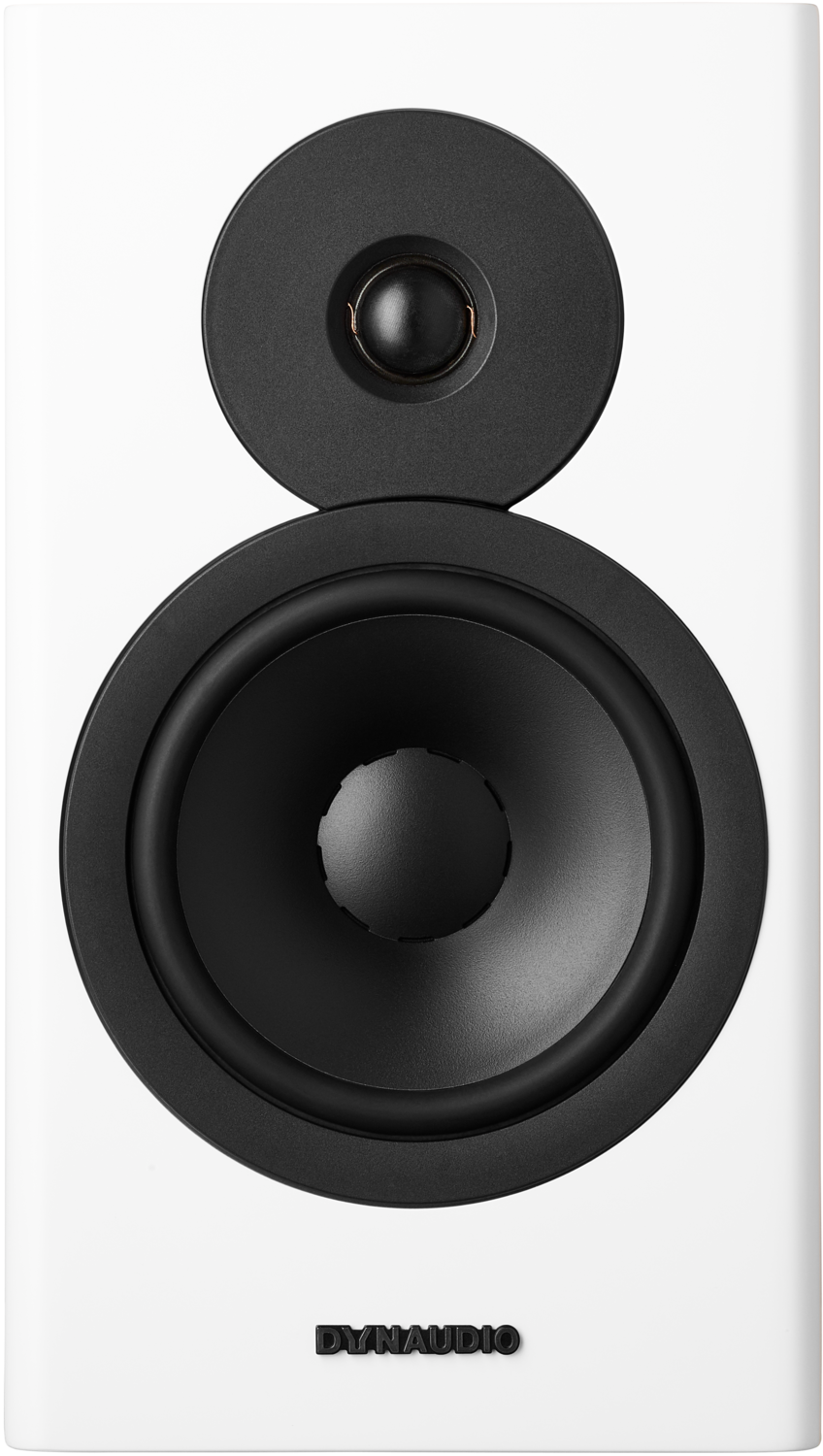

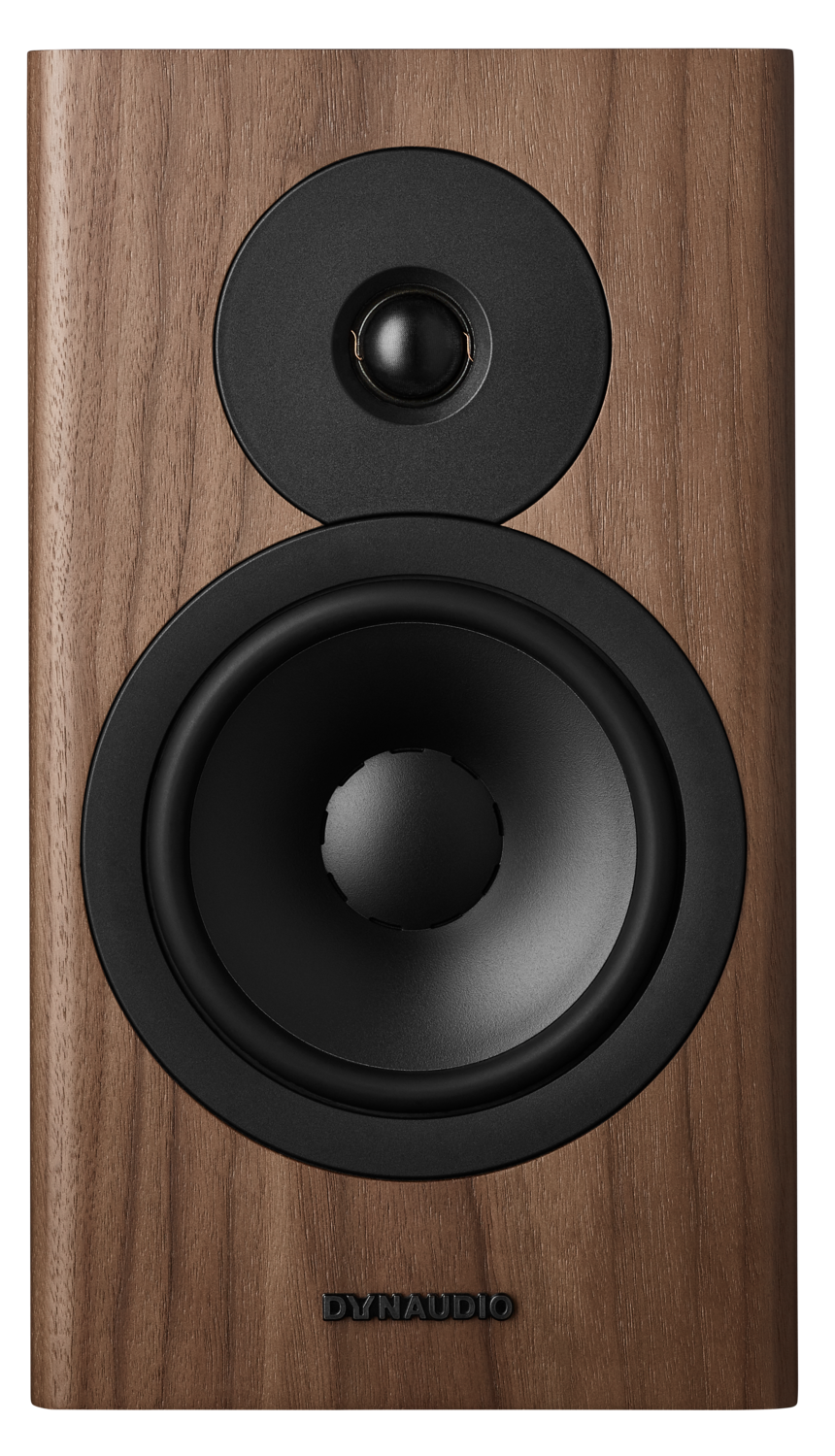

Ask Us About This ProductIt’s true that you can have too much of a good thing. Try as you might, some good things just won’t fit in your living room – but Evoke 20 will. Evoke 20 is a full-size stand-mounted speaker designed for almost any space. Its powerful 18cm mid/bass driver ensures it can flex its muscles when there’s heavy lifting to be done, while its 28mm soft-dome tweeter takes care of the fine detail. And, of course, its design looks fantastic wherever you put it.
Evoke takes advanced characteristics directly from our top-of-the-range speakers – including finish quality, driver technology and design. It’s the best of all worlds. And that means each of the five Evoke models can vibe with you, grow with you, and live with you – however you listen. Every single part has been looked at from the ground up. Every driver has been optimised in Dynaudio’s state-of-the-art Jupiter measuring lab. And every finish has been painstakingly formulated and executed to reflect the quality of those on our most exclusive speakers. Music to last a lifetime Creating a new family of speakers is something our designers relish. At the start, the whole process is a sandbox – one that’s full of out there ideas, wish-lists and ingenious solutions that had been percolating in brains and notebooks. And because they have decades of established research and legendary products to draw on, with Evoke they landed right in the Goldilocks zone. They combined cutting-edge technology directly from the Contour and Confidence ranges – not to mention ultra-high build and finish quality, and traditional, elegant cabinets designed to look great in any listening environment – with exceptional value for money. Take the Cerotar tweeter. It’s a ground-up design based on our award-winning Esotar Forty anniversary tweeter and the mighty Esotar 3 found in the money-no-object Confidence. Underneath the 28mm soft-dome diaphragm sits the resonance-defeating Hexis inner dome – the same as you’ll find in the Confidence tweeter. Behind it all, the motor system uses a strontium carbonate Ferrite+ ceramic magnet for higher sensitivity. You’ll find this system in our Focus streaming speakers, too. The Esotec+ woofers use MSP (Magnesium Silicate Polymer) in their diaphragms – just like all Dynaudio speakers have done for decades. The diaphragm is 0.4mm thin, which provides the ideal combination of lightness, stiffness and damping to ensure optimum performance.
| Sensitivity | 86dB (2.83V/1m) |
| IEC long term power handling | 180W |
| Impedance | 6 Ohms |
| Frequency response (+/- 3dB) | 40Hz–23kHz |

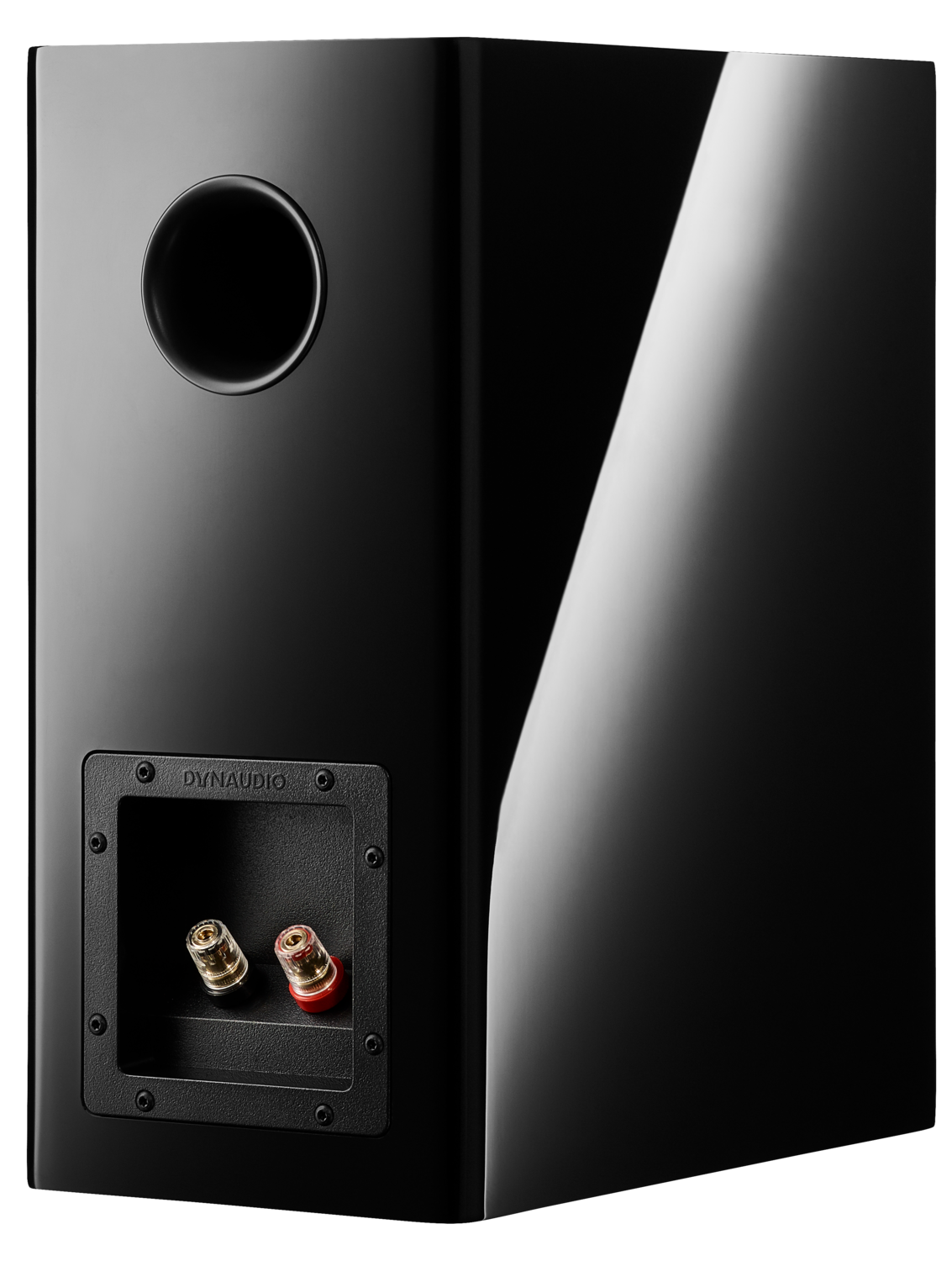

| Box principle | Bass-reflex rear-mounted dual-flared port |
| Crossover | 2-way |
| Crossover frequency | 3200Hz |
| Woofer | 18cm MSP cone |
| Midrange | |
| Tweeter | 28mm Cerotar (Hexis) |
| Dimensions (W x H x D) | 215 x 380 x 307mm |
