Ask Us About This ProductMM/MC phono preamplifier

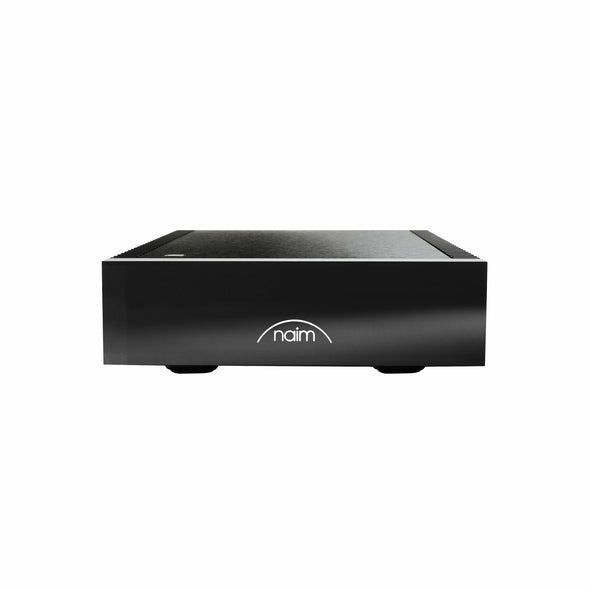

Vinyl records have never sounded better than when played with the NVC TT phono preamplifier. This device is designed to work seamlessly with any turntable that uses MC cartridges or MM cartridges. It connects effortlessly to preamplifiers NAC 332 or NSC 222 to deliver crisp, clear audio with stunning clarity and detail. To achieve the ultimate audio experience, it is recommended to pair the NVC TT with its dedicated power supply, the NPX TT. With its user-friendly interface, the NVC TT phono preamplifier is the perfect addition to any audiophile's collection.
Purposeful materiality
The NVC TT features the finest audiophile components and undergoes highly precise measurements to produce uncompromising results. The NPX TT power supply is designed to provide even cleaner power to enhance the sound quality of the NVC TT.
The Story of Naim & Aluminium
The sleek design of the NVC TT combines premium materials and adjustable logo brightness, resulting in a contemporary yet timeless look. The founder of Naim, Julian Vereker, was a pioneer in using aluminium to wrap electronic components in order to protect delicate audio components from magnetic fields, unstable temperatures, and unwanted vibrations.
SPECIFICATIONS
- Product type : Switchable MM/MC phono stage with MC load adjustment
- THD+N : MM: <0.005% ref 50mV input / MC (low & high gain): <0.005% ref 1.5mV inpu
- Analogue gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable) - Analogue inputs :
MM: -2dB at 20Hz and -3dB at 14Hz (Partial) - Analogue outputs :
Max output signal: 8 Vrms - Power supply inputs : Type 1
- IEC Cut : (Partial) - 2dB at 20Hz and -3dB at 14Hz
- Crosstalk - Phono : MM: >75dB
- Listening height :
MM: 22dB ref 5mV input
MC: 23dB ref 0,5mV input low; 17dB ref 0,5mV high setting - Input Overload : 8.2 V RMS
- Charging :
MM: 47kΩ and 100pF
MC (low & high gain):
16 selectable resistive values:
1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω
16 selectable capacitive values:
100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF - Phono gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable) - RIAA Accuracy : MM: +/-0.1dB
- Depth : 31.7 cm / 12.5 in
- Height : 7 cm / 2.75 in
- Width : 21.4 cm / 8.37 in
- Weight : 3.4 kg / 7.5 lb
- Power Supply Options :
NSC 222 and NAC 332 - Cables provided :
Power supply
