Ask Us About This Product- Fully adjustable phono stage pre amp
- Moving Magnet (MM) and Moving Coil (MC) compatible
- Includes patented Phono Enhancer function
- Zero hum and very high accuracy

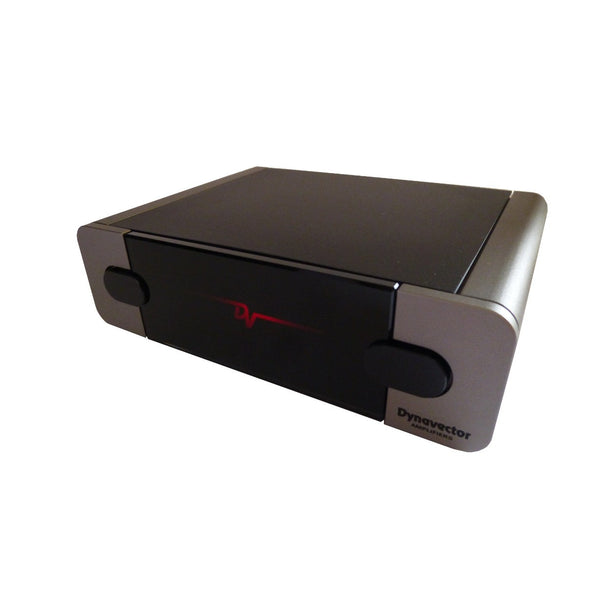

The P75 is a complete Phono solution in one compact unit. It is user adjustable and will handle virtually any type of cartridge on the market. The performance is noteworthy, with extreme RIAA accuracy, very low noise and outstanding dynamic range.
The P75 incorporates a unique feature called "Phono Enhancer" (PE) which extracts the current signal, improve the magnetic field in the cartridge itself, which in turn provides an even more musical performance.
The P75's sophisticated internal power supply runs from a low cost ac adaptor and generates the high voltage rails necessary for high quality sound. One other great benefit of the P75 is that with no mains frequency components, it solves the huge problem of hum that can plague phono systems.
Please contact us for more information and to arrange a demonstration.
Specifications:
| Power Supply | AC to DC power adaptor 12vDC +/-15% 350mA (min) 2 Pin Centre positive Outer Diameter 5.5mm Inner Diameter 2.1mm |
| Input Sensitivity | Low Output Moving Coil: 0.2mV (200µV) Medium Output MC/MM: 1.0mV hough Output Moving Magnet: 2.0mV |
| Shunt Capacitance (pF) | 660, 760, 860, Custom (MC only) 100, 200, 300, Custom (MM only) |
| Gain | Low Output Moving Coil: 60 & 63dB Medium Output MC/MM: 56dB hough Output Moving Magnet: 40 & 46dB |
| Loading Ω (ohms) | Low Output Moving Coil: 30, 60, 100, 220, 470, Custom Medium Output MC/MM: 470 hough Output Moving Magnet: 47k |
| Low Output MC Phono Enhancer | Specs vary according to cartridge make and model. Output level determined mainly by the cartridge internal DC coil resistance. The resistance/gain adjustments available. PE mode works only with low output MC cartridges. It may not suit all brands or models. Results obtained depend on the quality of the cartridge's magnetic circuit. Unsure? Try it out, it cannot do any harm. |
