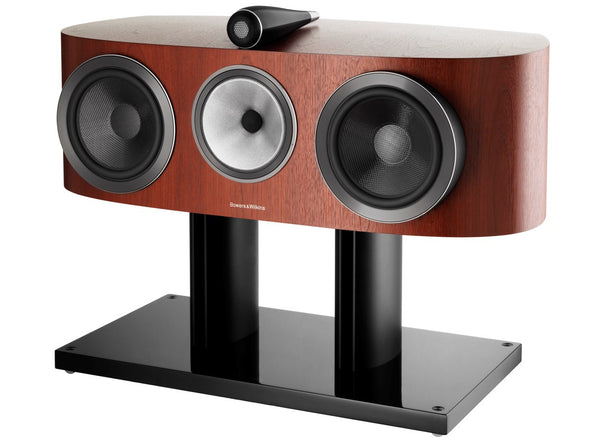

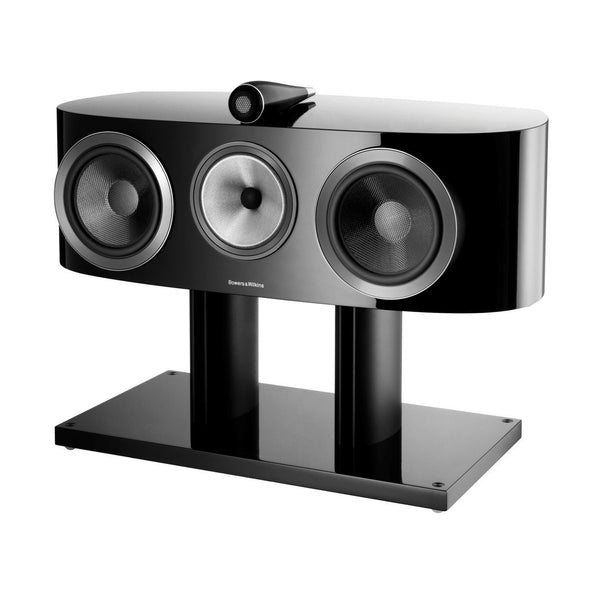

HTM81 D4 Centre Speaker

3-way ported centre speaker Diamond Dome Tweeter Continuum Cone FST™ Midrange Aerofoil Cone bass units Perfect Match for B&W 800 D3 and 802 D3 loudspeakers The HTM1 D3 is the perfect centre speaker to partner either the 800 D3 or...


Regular price £7,500.00

Want to know about this item?

Ask Us About This Product



  • 3-way ported centre speaker
  • Diamond Dome Tweeter
  • Continuum Cone FST™ Midrange
  • Aerofoil Cone bass units
  • Perfect Match for B&W 800 D3 and 802 D3 loudspeakers

The HTM1 D3 is the perfect centre speaker to partner either the 800 D3 or 802 D3 in a breathtakingly realistic home theatre system. Its combination of Diamond domes, Continuum cones and Aerofoil bass drivers delivers pristine dialogue and natural, realistic music.

The stand is not included.

As part of a home theatre, Grahams recommend you partner this centre speaker with:

Please contact us to arrange a demonstration.

Specifications

Description 3-way vented-box system
Drive units 1x ø25mm (1 in) diamond dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø200mm (8 in) Aerofoil cone bass
Frequency range 20Hz to 35kHz
Frequency response
(+/-3dB from reference axis)
28Hz to 28kHz
Sensitivity
(on axis at 2.83Vrms)
91dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 80Hz - 20kHz
<0.6% 110Hz - 20kHz
Nominal impedance 8Ω (minimum 3.0Ω)
Recommended amplifier power

50W - 500W into 8Ω on unclipped programme

Dimensions H: 330mm (13 in)
W: 850mm (33.5 in)
D: 342mm (13.5 in)
Net weight 30.4kg (67lb)
Finishes
Cabinet: Grille
Gloss Black Black
Rosenut Black
Satin White Grey
