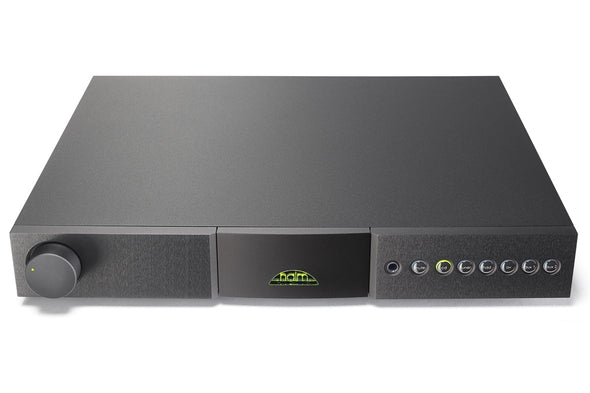

NAIT XS 2 Integrated Amplifier

The NAIT XS 2 is described by NAIM as the 'musical heart of your system'. Its high performance preamplifier stage is as transparent as you would expect from a Naim amplifier.

The NAIT XS 2 can be upgraded with external power supplies, power amplifiers and even phono stages to become the musical heart of a modern music system to get the best from digital, CD, vinyl and AV sources.

Please contact us to arrange a demonstration.

Technical Specifications:

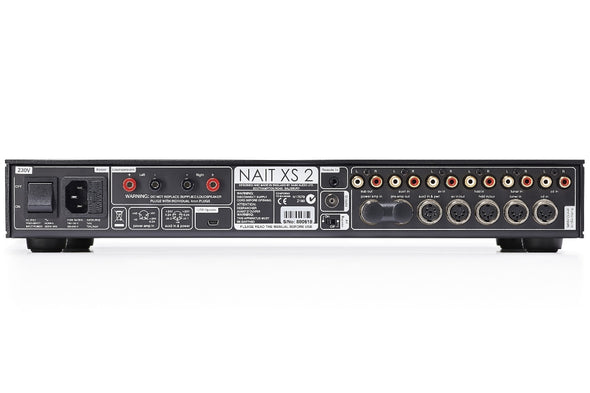

Audio Inputs
Input Sensitivity


Input Impedance


Analogue Input

4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)

Audio Outputs
Line Outputs Fixed (level)

130mV, 600Ω

Line Outputs Variable (level)

775mV, <50Ω

Power Outputs

Naim phono amplifier

Audio Outputs

Speakers, record, preamp and variable sub

Other Outputs

Headphone, 1/4" jack

Speaker Outputs
Power Output

70W/channel, 8Ω

Remote Control

Infra Red (RC5)

Remote Input

1 x 3.5mm jack on rear (RC5 modulated/unmodulated)


1 x USB Type Mini-B

User Control

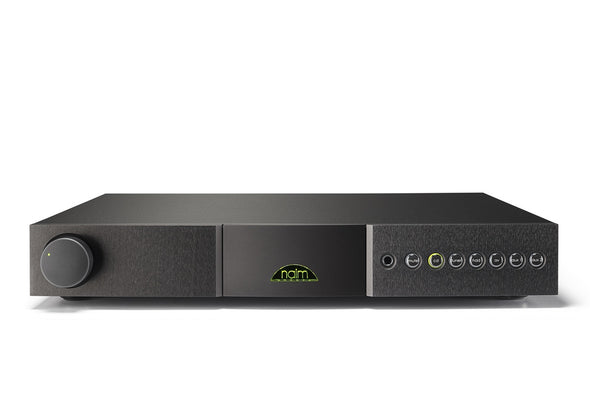

Front Panel

Volume Control, seven button matrix

Mains Supply

100V, 115V, 230V; 50 or 60Hz

Power Consumption (quiescent)


Power Consumption (max.)

290VA (max.)

Dimensions (HxWxD)

70 x 432 x 301 mm


8.4 kg

Shipping Dimensions

200 x 590 x 500 mm

Shipping Weight

10.35 kg

Supplied with

NARCOM-4 Remote Control


Brushed and black anodised


Black powder coated
